Описание

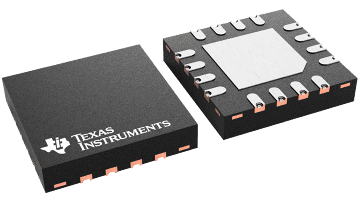

The DRV8801A-Q1 device provides a versatile motor-driver solution with a full H-bridge driver. The device can drive a brushed DC motor or one winding of a stepper motor, as well as other devices like solenoids. A simple PHASE and ENABLE interface allows easy interfacing to controller circuits.The output stages use N-channel power MOSFETs configured as an H-bridge. The DRV8801A-Q1 device is capable of peak output currents up to ±2.8 A and operating voltages up to 36 V. An internal charge pump generates required gate drive voltages.A low-power sleep mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin.Internal protection functions are provided undervoltage lockout, overcurrent protection, short-to-supply protection, short-to-ground protection, overtemperature warning, and overtemperature shutdown. Overcurrent (including short-to-ground and short-to-supply) and overtemperature fault conditions are indicated via an nFAULT pin.The DRV8801A-Q1 device is packaged in a 16-pin WQFN package with wettable flanks and exposed thermal pad (Eco-friendly: RoHS & no Sb/Br).

Qualified for Automotive Applications
Low ON-Resistance (0.83 Ω) Outputs
Low-Power Sleep Mode
100% PWM Duty Cycle Supported
6.5 to 36-V Operating Supply Voltage Range
Thermally Enhanced Surface-Mount Package
Configurable Overcurrent Limit
Protection Features
- V_BB Undervoltage Lockout (UVLO)
- Overcurrent Protection (OCP)
- Short-to-Supply Protection
- Short-to-Ground Protection
- Overtemperature Warning (OTW)
- Overtemperature shutdown (OTS)
- Overcurrent and Overtemperature Fault Conditions Indicated On Pin (nFAULT)

Number of full bridges	1
Vs (min) (V)	6.5
Vs ABS (max) (V)	40
Peak output current (A)	2.8
RDS(ON) (HS + LS) (mΩ)	830
Sleep current (µA)	10
Control mode	PH/EN
Control interface	Hardware (GPIO)
Features	Current sense Amplifier
Rating	Automotive
Operating temperature range (°C)	-40 to 125
