Описание

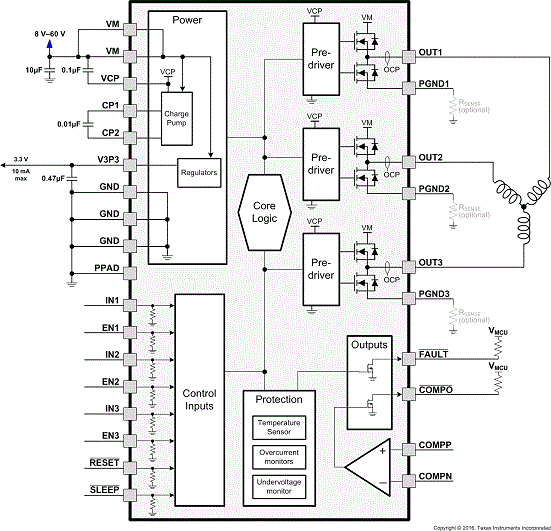

The DRV8313 provides three individually controllable half-H-bridge drivers. The device is intended to drive a three-phase brushless-DC motor, although it can also be used to drive solenoids or other loads. Each output driver channel consists of N-channel power MOSFETs configured in a 1/2-H-bridge configuration. Each 1/2-H-bridge driver has a dedicated ground terminal, which allows independent external current sensing. An uncommitted comparator is integrated into the DRV8313, which allows for the construction of current-limit circuitry or other functions. Internal protection functions are provided for undervoltage, charge pump faults, overcurrent, short circuits, and overtemperature. Fault conditions are indicated by the nFAULT pin. For all available packages, see the orderable addendum at the end of the data sheet.

Triple 1/2-H Bridge Driver IC
- 3-Phase brushless DC Motors
- Solenoid and Brushed DC Motors
High Current-Drive Capability: 2.5-A Peak
Low MOSFET ON-Resistance
Independent 1/2-H-Bridge Control
Uncommitted Comparator Can Be Used for Current Limit or Other Functions
Built-In 3.3-V 10-mA LDO Regulator
8-V to 60-V Operating Supply-Voltage Range
Sleep Mode for Standby Operation
Small Package and Footprint
- 28-Pin HTSSOP (PowerPAD Package)
- 36-Pin VQFN

All trademarks are the property of their respective owners.

Rating	Catalog
Architecture	Integrated FET
Control interface	3xPWM
RDS(ON) (HS + LS) (mΩ)	480
Peak output current (A)	3
Vs (min) (V)	8
Vs ABS (max) (V)	65
Features	Integrated FETs
Operating temperature range (°C)	-40 to 125
