Описание

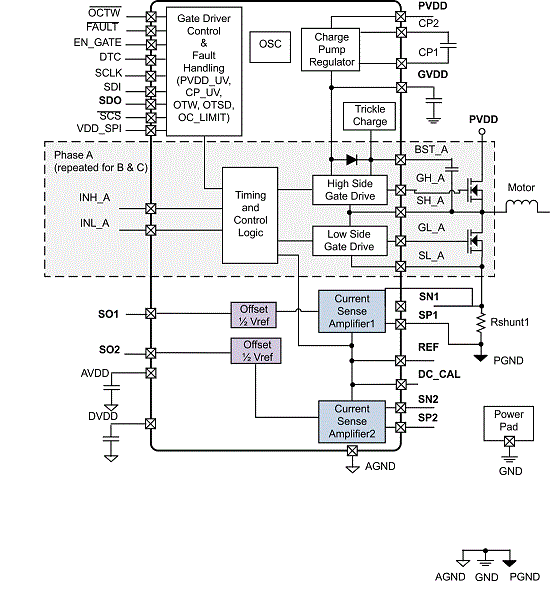

The DRV8303 is a gate driver IC for three-phase motor-drive applications. The device provides three half bridge drivers, each capable of driving two N-channel MOSFETs. The device supports up to 1.7-A source and 2.3-A peak current capability. The DRV8303 can operate off of a single power supply with a wide range from 6-V to 60-V. It uses a bootstrap gate-driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8303 uses automatic hand shaking when the high-side or low-side MOSFET is switching to prevent current shoot through. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions. The DRV8303 includes two current-shunt amplifiers for accurate current measurement. The amplifiers support bi-directional current sensing and provide and adjustable output offset up to 3 V. The serial peripheral interface (SPI) provides detailed fault reporting and flexible parameter settings such as gain options for the current-shunt amplifiers and slew-rate control of the gate drivers. For all available packages, see the orderable addendum at the end of the data sheet.

6-V to 60-V Operating Supply Voltage Range
1.7-A Source and 2.3-A Sink Gate Drive Current Capability
Slew Rate Control for EMI Reduction
Bootstrap Gate Driver With 100% Duty Cycle Support
6 or 3 PWM Input Modes
Dual Integrated Current-Shunt Amplifiers With Adjustable Gain and Offset
3.3-V and 5-V Interface Support
Serial Peripheral Interface (SPI)
Protection Features:
- Programmable Dead Time Control (DTC)
- Programmable Overcurrent Protection (OCP)
- PVDD and GVDD Undervoltage Lockout (UVLO)
- GVDD Overvoltage Lockout (OVLO)
- Overtemperature Warning/Shutdown (OTW/OTS)
- Reported through nFAULT, nOCTW, and SPI Registers

All trademarks are the property of their respective owners.

Rating	Catalog
Architecture	Gate driver
Control interface	3xPWM, 6xPWM
Gate drive (A)	1.7
Vs (min) (V)	6
Vs ABS (max) (V)	65
Features	Current sense Amplifier, SPI/I2C
Operating temperature range (°C)	-40 to 125
