Описание

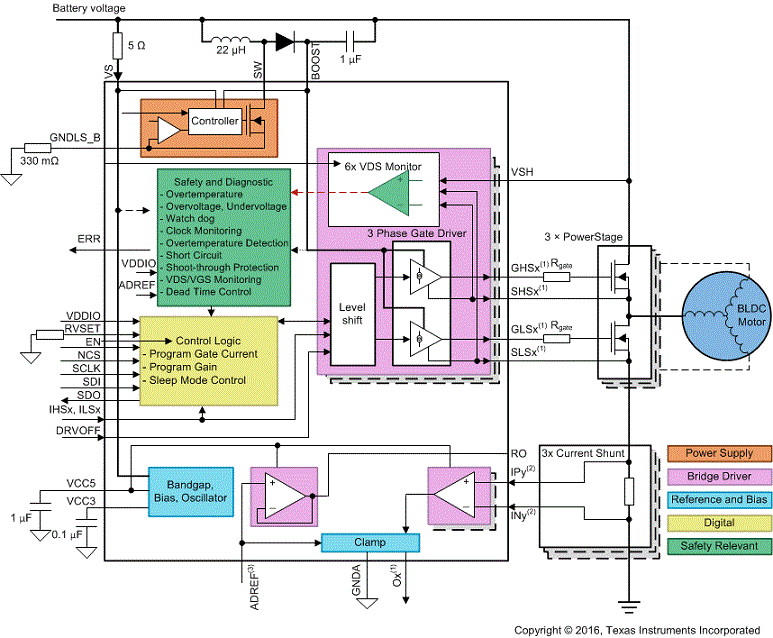

The DRV3205-Q1 bridge driver is dedicated to automotive three-phase brushless DC motor control applications. The device provides six dedicated drivers for standard-level N-channel MOSFET transistors. A boost converter with an integrated FET provides the overdrive voltage, allowing full control on the power stages even for low battery voltage down to 4.75 V. The strong driver strength is suitable for high-current applications and programmable to limit peak output current.The device incorporates robust FET protection and system monitoring functions like a Q&A watchdog and voltage monitors for I/O supplies and ADC reference voltages. Integrated internal diagnostic functions can be accessed and programmed through an SPI interface.

AEC-Q100 Qualified for Automotive Applications:
- Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature
Three-Phase Bridge Driver for Motor Control
Suitable for 12-V and 24-V Applications
Three Integrated High-Accuracy Current Sense Amplifiers
Integrated Boost Converter, Gate Drive to 4.75 V
Drives 6 Separate N-Channel Power MOSFETs
Strong 1-A Gate Drive for High-Current FETs
Programmable Dead Time
PWM Frequency up to 20 kHz
Supports 100% Duty Cycle Operation
Short-Circuit Protection
- VDS-Monitoring (Adjustable Detection Level)
- Shunt Current Limit (Adjustable Detection Level)
Overvoltage and Undervoltage Protection
Overtemperature Warning and Shut Down
Sophisticated Failure Detection and Handling Through SPI
System Supervision
- Q&A Watchdog
- I/O Supply Monitoring
- ADREF Monitoring
Programmable Internal Fault Diagnostics
Sleep Mode Function
Thermally-Enhanced 48-Pin HTQFP PowerPAD™ IC Package (7-mm × 7-mm Body)

Rating	Automotive
Architecture	Gate driver
Control interface	3xPWM, 6xPWM
Gate drive (A)	1
Vs (min) (V)	4.75
Vs ABS (max) (V)	60
Features	Current sense Amplifier, SPI/I2C, Watchdog timer
Operating temperature range (°C)	-40 to 125
TI functional safety category	Functional Safety-Compliant
