Описание

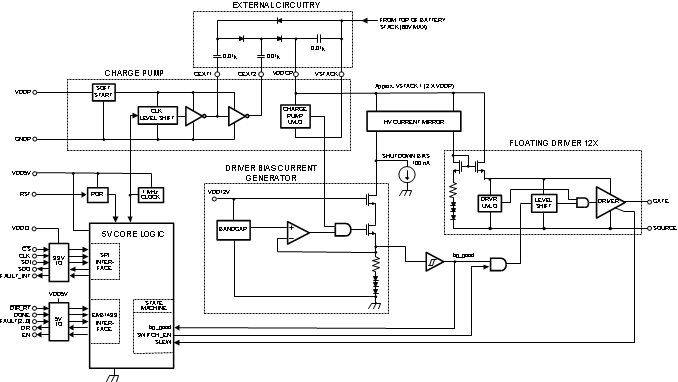

The EMB1428 Switch Matrix Gate Driver IC is designed to work in conjunction with EMB1499 DC/DC Controller IC to support TI’s switch matrix based active cell balancing scheme in a battery management system. The EMB1428 provides 12 floating MOSFET gate drivers necessary for balancing up to 7 battery cells connected in a series stack. Multiple EMB1428 ICs may be used together to balance a stack of more than seven battery cells. The EMB1428 integrated circuit interfaces with the EMB1499 DC/DC controller to control and enable charging and discharging modes. The EMB1428 uses an SPI bus to accept commands from the main controller (CPU/MCU) on which battery cell should be charged or discharged and to report back any faults to the main controller (CPU/MCU).

60V Maximum Stack Operating Voltage
Twelve (12) Floating Gate Drivers
SPI Bus Interface (for Charge/discharge
Commands and Fault Reporting)
Low Power Mode
EMB1428Q is an Automotive Grade Product
that is AEC-Q100 Grade 1 Qualified
(–40°C to +125°C Operating
Junction Temperature)

Number of series cells (min)	6
Vin (max) (V)	5.5
Features	Cell balancing, Multi-cell support, Stackable (built-in interface)
Device type	Cell monitor and balancer
Number of series cells (max)	14
Operating temperature range (°C)	-40 to 125
Rating	Automotive
Communication interface	SPI
Operating current (typ) (µA)	750
