BQ76PL102 Texas instruments

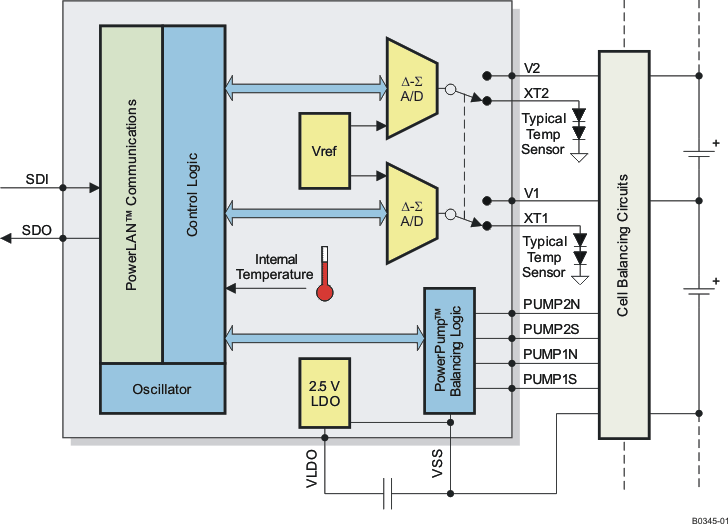

The bq76PL102 PowerLAN dual-cell battery monitor is part of a complete scalable battery management system for use with arrays of up to 12 Li-Ion rechargeable cells. The bq76PL102 connects to one or two cells in a series string, performs voltage and temperature monitoring of each individual cell, and reports these parameters over the PowerLAN communication network. Together with a bq78PL114 master-gateway battery controller, the bq76PL102 forms a complete battery monitoring and management system for higher cell-count applications. Partitioning of the battery monitor function on a per cell basis permits connection and measurement close to the cell. This results in superior accuracy and management over competing solutions. This scheme also facilitates the PowerPump cell balancing system, a technique which actively balances capacities of Li-Ion batteries without the excessive heat or limitations of bleed-balancing techniques. The bq76PL102 PowerPump cell balancing technology uses a charge-transfer methodology which does not bleed off excess energy as heat, but instead moves energy dynamically from cell to cell as needed. Balancing is performed during all battery operational modes – charge, discharge, and rest. Balancing is automatically coordinated between all cells on a PowerLAN system. PowerPump balancing technology results in longer run time and longer cell life. The PowerLAN communications architecture has been engineered to provide robust communications in tough EMI/RFI environments while avoiding the excessive power draw, high parts count, and elevated cost of other solutions. PowerLAN permits easy scalability using series connections of bq76PL102 dual-cell battery monitors. High-cell-count battery systems of up to 12 series cells are easily constructed without complicated high-voltage cell measurement restrictions. The bq76PL102 works with the bq78PL114 master-gateway battery controller.

• Monitors up to Two Individual Cell Voltages and Temperatures
• Part of a Complete Low-Cost Solution for Battery Packs of up to 12 Series and One or More Parallel Cells (When Used With bq78PL114).
• Advanced PowerPump Balancing Technology Equalizes Cells in Li-Ion Battery Packs, Resulting in Longer Run Time and Cell Life.
• PowerPump™ Cell Balancing Transfers Charge From Cell to Cell During all Operating Conditions – No Wasteful Current Bleeding or Associated Heat Buildup.
• Unique PowerLAN Isolated Communications Technology Permits Simultaneous Measurement of All Individual Cell Voltages in a Series String.
• Low Current Consumption:
  • <250 µA Active
  • <35 µA Standby
  • <1 µA Undervoltage Shutdown
• Connects Directly to Cells, No Resistive Dividers
• Internal LDO Regulator for Support Circuitry
• Ultrasmall Footprint, 3-mm × 3-mm
• Millivolt Measurement Resolution Using Delta-Sigma A/D Converter
• Self-Calibrating Time Base – No Crystal Required When Used With bq78PL114
• APPLICATIONS
  • Uninterruptible Power Supplies (UPS)
  • Portable Medical and Test Equipment
  • Electric Bikes and Mild-EV Battery Packs
  • Multicell Series Strings ≥ 5S

PowerPump, PowerLAN are trademarks of Texas Instruments.

Number of series cells (min)	1
Vin (max) (V)	4.5
Features	Multi-cell support
Device type	Cell monitor and balancer
Number of series cells (max)	2
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Communication interface	No Communication
Operating current (typ) (µA)	250
