Описание

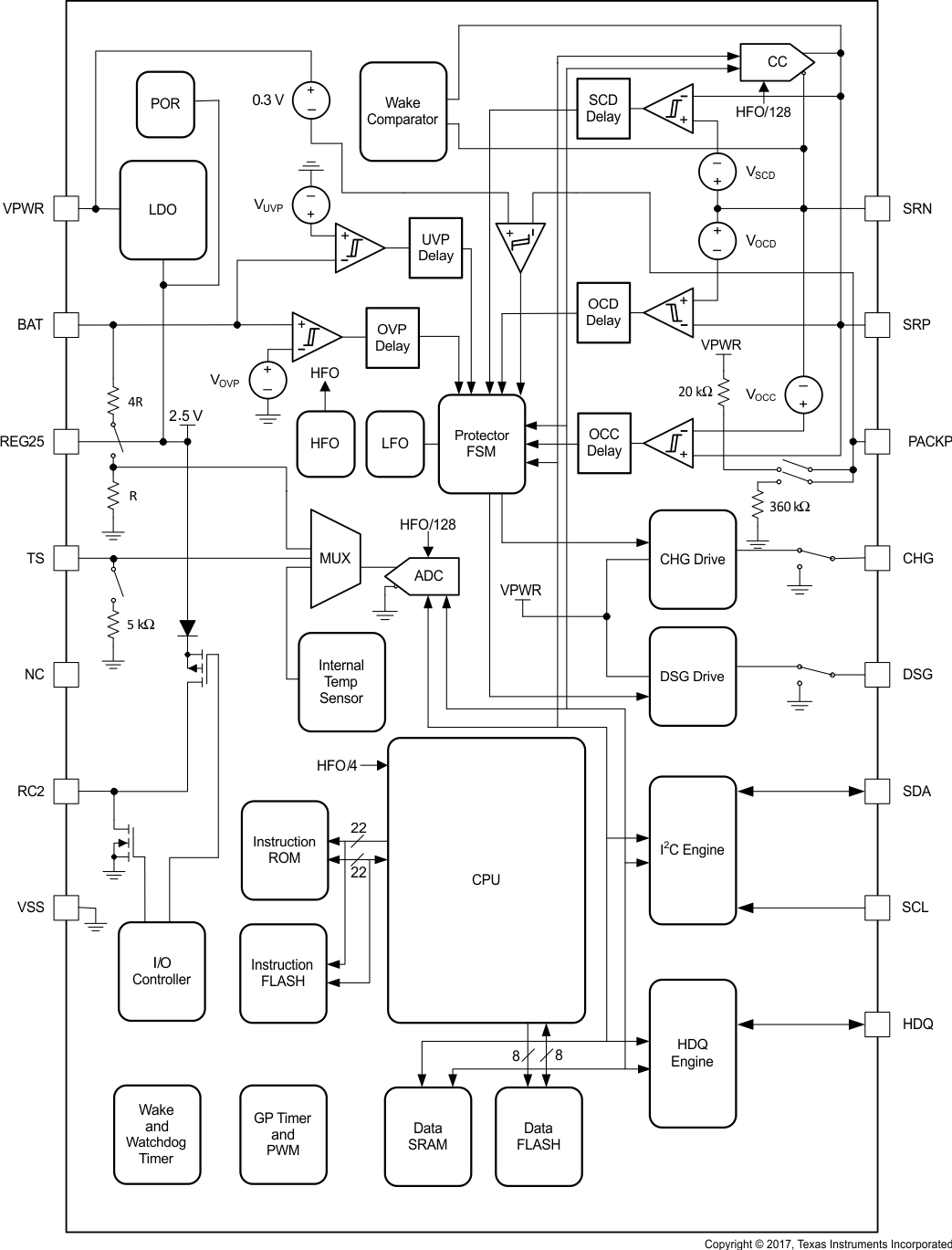

The Texas Instruments bq27742-G1 is a fuel gauge for single-cell Li-Ion battery packs that uses patented Impedance Track™ technology to deliver rate-, temperature-, and aging-compensated predictions of remaining battery capacity and system runtime with highest accuracy. The device also includes a fully integrated high-side protector that eliminates the need for a separate Li-Ion protection circuit and provides a full suite of high-accuracy fault detections for overvoltage, undervoltage, overcurrent in charge, overcurrent in discharge, and short-circuit in discharge conditions. The hardware protection functions offer built-in data flash-based programmability, allowing simple reconfiguration of existing devices for varying end equipment needs. The fuel gauge provides information such as remaining battery capacity (mAh), state-of-charge (%), runtime to empty (minutes), voltage (mV), current (mA), and temperature (°C), as well as recording vital parameters throughout the lifetime of the battery. The device also supports interrupts to the host to indicate detection of a variety of important battery conditions to the system.The DSBGA is a 15-ball package (2.78 mm × 1.96 mm) that is ideal for space-constrained applications.

Battery Fuel Gauge and Protector for Single-Cell Li-Ion Applications
Microcontroller Peripheral Provides:
- Precision 16-Bit, High-Side Coulomb Counter with Low-Value Sense Resistor
  (5 mΩ to 20 mΩ)
- External and Internal Temperature Sensors for Battery Temperature Reporting
- Lifetime and Current Data Logging
- 64 Bytes of Non-Volatile Scratch Pad Flash
- SHA-1 Authentication Capability
Battery Fuel Gauging Based on Patented Impedance Track™ Technology
- Models Battery Discharge Curve for Accurate Time-To-Empty Predictions
- Automatically Adjusts for Aging, Self-Discharge, and Temperature- and Rate-Induced Effects on Battery
Integrated High-side NMOS Protection FET Drive
Hardware-based Safety and Protection:
- Overvoltage (OVP)
- Undervoltage (UVP)
- Overcurrent in Charge (OCC)
- Overcurrent in Discharge (OCD)
- Short-Circuit in Discharge (SCD)
I²C and HDQ Interface Formats for Communication with Host System
Ultra-Compact, 15-Ball NanoFree™ DSBGA

Cell chemistry	Li-Ion/Li-Polymer, LiFePO4
Number of series cells	Single Cell
Communication interface	HDQ, I2C
Battery capacity (min) (mAh)	200
Battery capacity (max) (mAh)	16000
Implementation	Pack
External capacity indication	None
Features	Impedance Track™ algorithm, Integrated Protector, SHA-1 Authentication
Operating temperature range (°C)	-40 to 85
Rating	Catalog
