Описание

The Texas Instruments bq27220 battery fuel gauge is a single-cell gauge that requires minimal user-configuration and system microcontroller firmware development, leading to quick system bring-up. The bq27220 device uses the Compensated End-of-Discharge Voltage (CEDV) algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), runtime-to-empty (min), battery voltage (mV), temperature (°C), and state-of-health (%). The bq27220 battery fuel gauge has ultra-low power consumption in NORMAL (50 µA) and SLEEP (9 µA) modes, leading to longer battery runtime. Configurable interrupts help save system power and free up the host from continuous polling. Accurate temperature sensing is supported via an external thermistor. Customers can use preloaded CEDV parameters in ROM or can generate custom chemistry parameters using TIs web-based tool, GAUGEPARCAL. Custom-generated parameters can be either programmed in the device RAM by the host on power up of the system or customers can program the parameters to an onboard One-Time Programmable (OTP) memory. Battery fuel gauging with the bq27220 device requires connections only to PACK+ (P+) and PACK– (P–) for a removable battery pack or embedded battery circuit. The tiny, 9-ball, 1.62 mm × 1.58 mm, 0.5-mm pitch NanoFree chip scale package (DSBGA) is ideal for space-constrained applications.

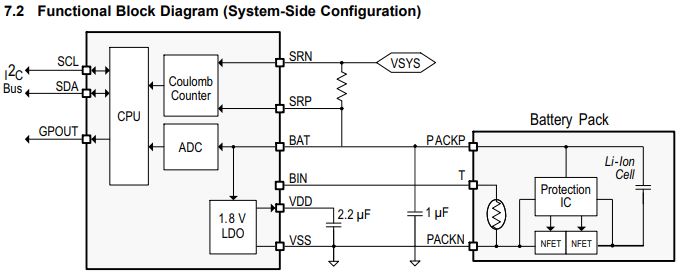

Single-Cell Li-Ion Battery Fuel Gauge
- Resides in Pack or on System Board
- Supports Embedded or Removable Batteries
- Powers Directly from Battery with Integrated
  LDO
- Supports a Low-Value (10-mΩ) External Sense
  Resistor
Ultra-Low Power Consumption in NORMAL
(50 µA) and SLEEP (9 µA) Modes
Battery Fuel Gauging Based on Compensated
End-of-Discharge Voltage (CEDV) Technology
- Reports Remaining Capacity and State-of-
  Charge (SOC) with Smoothing Filter
- Adjusts Automatically for Battery Aging, Self-
  Discharge, Temperature, and Rate Changes
- Provides Battery State-of-Health (Aging)
  Estimation
Microcontroller Peripheral Supports:
- 400-kHz I²C™ Serial Interface
- Configurable SOC Interrupt OR
  Battery Low Digital Output Warning
- Internal Temperature Sensor OR
  Host-Reported Temperature OR
  External Thermistor

Cell chemistry	Li-Ion/Li-Polymer
Number of series cells	Single Cell
Communication interface	I2C
Battery capacity (min) (mAh)	100
Battery capacity (max) (mAh)	32000
Implementation	Pack, System
External capacity indication	None
Features	CEDV algorithm
Operating temperature range (°C)	-40 to 85
Rating	Catalog
