Описание

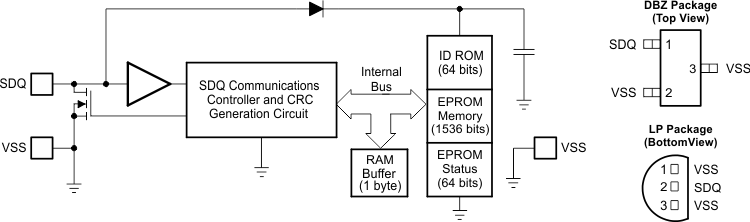

The bq2026 is a 1.5K-bit serial EPROM containing a factory-programmed, unique 48-bit identification number, 8-bit family code, and a 64-bit status register. The bq2026 SDQ™ interface requires only a single connection and a ground return. The SDQ pin is also the sole power source for the bq2026. The small surface-mount package options saves printed-circuit-board space, while the low cost makes it ideal for applications such as battery-pack configuration parameters, record maintenance, asset tracking, product-revision status, and access-code security.

1536 Bits of One-Time Programmable (OTP) EPROM For Storage Of User-Programmable Configuration Data
Factory-Programmed Unique 64-Bit Identification Number
Single-Wire Interface to Reduce Circuit Board Routing
Synchronous Communication Reduces Host Interrupt Overhead
6KV IEC 61000-4-2 ESD Compliance on Data Pin
No Standby Power Required
Available in a 3-Pin SOT-23 and TO-92 Packages

Communication interface	SDQ
Features	1.5k-bit EPROM
Vin (typ) (V)	3.7
Vin (max) (V)	5.5
Power consumption (typ) (mW)	20
Operating temperature range (°C)	-20 to 70
Rating	Catalog
