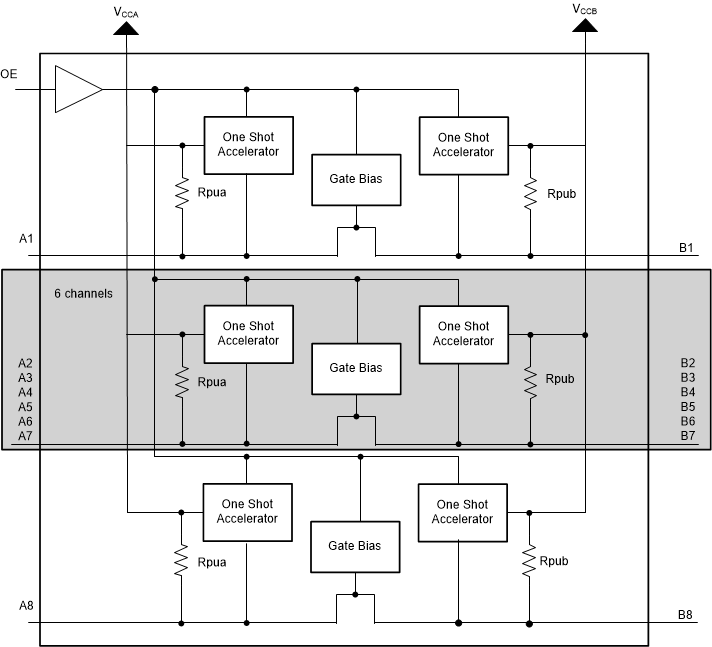

This device is an 8-bit non-inverting level translator that uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.4 V and 3.6 V. The B port tracks the VCCB pin supply voltage. The VCCB pin accepts any supply voltage between 1.65 V and 5.5 V. Two input supply pins allows for low Voltage bidirectional translation between any of the 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state.To ensure the Hi-Z state during power-up or power-down periods, tie OE to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.
- AEC-Q100 Qualified for Automotive Applications
- Device Temperature Grade 1: –40°C to 125°C
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C6
- No direction-control signal needed
- Maximum data rates
- 110 Mbps (push pull)
- 1.2 Mbps (open drain)
- 1.4 V to 3.6 V on A port and 1.65 V to 5.5 V on B port (VCCA ≤ VCCB)
- No power-supply sequencing required – either VCCA or VCCB can be ramped first
- Latch-up performance exceeds 100 mA per
JESD 78, Class II - ESD protection exceeds JESD 22 (A Port)
- 2000-V human body model (A114-B)
- 1000-V charged-device model (C101)
- IEC 61000-4-2 ESD (B port)
- ±8 kV contact discharge
- ±6 kV Air-gap discharge
| Technology family | TXS |
| Applications | I2C, MDIO, PMBus, SMBus |
| Bits (#) | 8 |
| Data rate (max) (MBits) | 110 |
| High input voltage (min) (V) | 1 |
| High input voltage (max) (V) | 5.5 |
| Vout (min) (V) | 1.4 |
| Vout (max) (V) | 5.5 |
| IOH (max) (mA) | 0 |
| IOL (max) (mA) | 0 |
| Supply current (max) (µA) | 8 |
| Features | Edge rate accelerator, Output enable |
| Input type | Transmission Gate |
| Output type | 3-State, Transmission Gate |
| Rating | Automotive |
| Operating temperature range (°C) | -40 to 125 |
