Описание

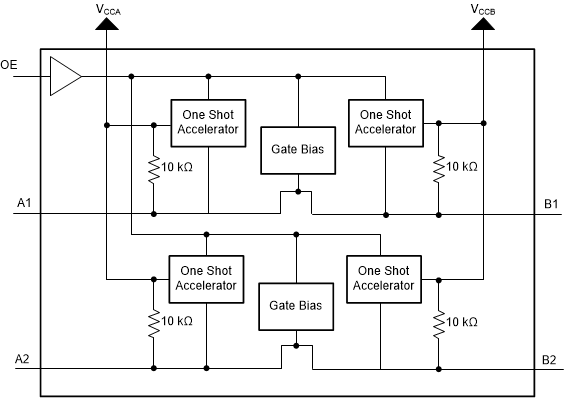

This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption.To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

No Direction-Control Signal Needed
Maximum Data Rates
- 24 Mbps (Push Pull)
- 2 Mbps (Open Drain)
Available in the Texas Instruments NanoStar™ Package
1.65 V to 3.6 V on A Port and 2.3 V to 5.5 V on B Port (V_CCA ≤ V_CCB)
V_CC Isolation Feature: If Either V_CC Input Is at GND, Both Ports Are in the High-Impedance State
No Power-Supply Sequencing Required: Either V_CCA or V_CCB Can Be Ramped First
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- A Port:
  - 2500-V Human-Body Model (A114-B)
  - 250-V Machine Model (A115-A)
  - 1500-V Charged-Device Model (C101)
- B Port:
  - 8-kV Human-Body Model (A114-B)
  - 250-V Machine Model (A115-A)
  - 1500-V Charged-Device Model (C101)

Technology family	TXS
Applications	I2C, MDIO
Bits (#)	2
Data rate (max) (MBits)	24
High input voltage (min) (V)	1.45
High input voltage (max) (V)	5.5
Vout (min) (V)	1.65
Vout (max) (V)	5.5
IOH (max) (mA)	0
IOL (max) (mA)	0
Supply current (max) (µA)	10
Features	Edge rate accelerator, Output enable, Partial power down (Ioff), Vcc isolation
Input type	Transmission Gate
Output type	3-State, Transmission Gate
Rating	Catalog
Operating temperature range (°C)	-40 to 85
