Описание

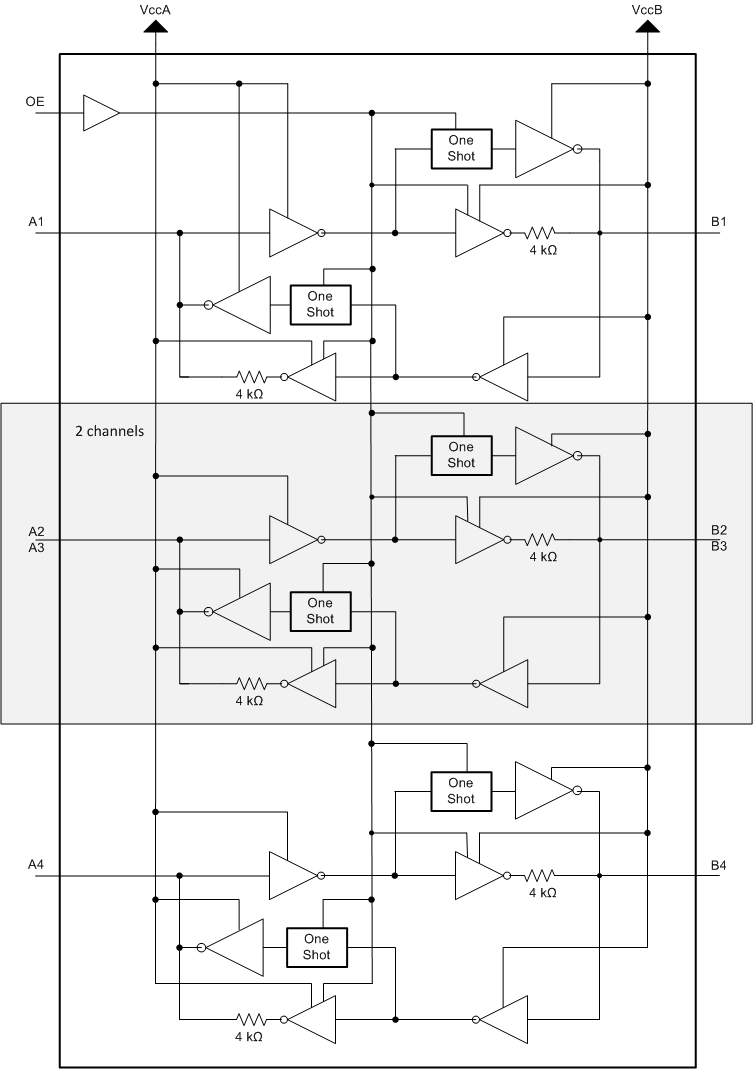

Voltage-level translators address the challenges posed by simultaneous use of different supply-voltage levels on the same circuit board. This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA should not exceed VCCB. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. The TXB0104 is designed so that the OE input circuit is supplied by VCCA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results
- Device Temperature Grade 1: –40°C to +125°C
  Ambient Operating Temperature Range
1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port
(V_CCA ≤ V_CCB)
V_CC Isolation Feature – If Either V_CC
Input is at GND, All Outputs are in the High-Impedance State
OE Input Circuit Referenced to V_CCA
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- A port
  - ±2500-V Human-Body Model (A114-B)
  - ±1000-V Charged-Device Model (C101)
- B port
  - ±15000-V Human-Body Model (A114-B)
  - ±1000-V Charged-Device Model (C101)

Technology family	TXB
Applications	I2S, JTAG, SPI, UART
Bits (#)	4
Data rate (max) (MBits)	100
High input voltage (min) (V)	0.78
High input voltage (max) (V)	5.5
Vout (min) (V)	1.2
Vout (max) (V)	5.5
IOH (max) (mA)	-0.02
IOL (max) (mA)	0.02
Supply current (max) (µA)	40
Features	Edge rate accelerator, Integrated pullup resistors, Output enable, Partial power down (Ioff), Vcc isolation
Input type	Standard CMOS
Output type	3-State, CMOS, Push-Pull
Rating	Automotive
Operating temperature range (°C)	-40 to 125
