Описание

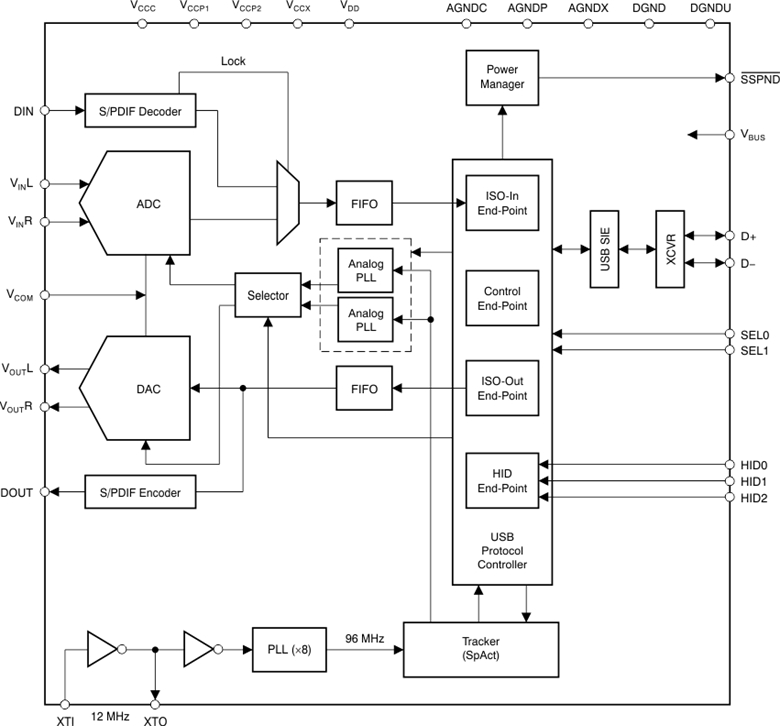

The PCM2903C is TIs single-chip, USB, stereo audio codec with a USB-compliant full-speed protocol controller and S/PDIF. The USB protocol controller requires no software code. The PCM2903C employs SpAct™ architecture, TIs unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enable playback and record with low clock jitter, as well as independent playback and record sampling rates.

On-Chip USB Interface:
- With Full-Speed Transceivers
- Fully Compliant With USB 2.0 Specification
- Certified by USB-IF
- USB Adaptive Mode for Playback
- USB Asynchronous Mode for Record
- Self-Powered
16-Bit Delta-Sigma ADC and DAC
Sampling Rates:
- DAC: 32, 44.1, 48 kHz
- ADC: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHz
On-Chip Clock Generator With Single 12-MHz
Clock Source
S/PDIF Input/Output
Single Power Supply:
- 3.3 V Typical
Stereo ADC:
- Analog Performance at V_CCC = V_CCP1 = V_CCP2
  = V_CCX = V_DD = 3.3 V:
  - THD+N = 0.01%
  - SNR = 89 dB
  - Dynamic Range = 89 dB
- Decimation Digital Filter:
  - Passband Ripple = ±0.05 dB
  - Stop-Band Attenuation = –65 dB
- Single-Ended Voltage Input
- Antialiasing Filter Included
- Digital HPF Included
Stereo DAC:
- Analog Performance at V_CCC = V_CCP1 = V_CCP2
  = V_CCX = V_DD = 3.3 V:
  - THD+N = 0.005%
  - SNR = 96 dB
  - Dynamic Range = 93 dB
- Oversampling Digital Filter:
  - Passband Ripple = ±0.1 dB
  - Stop-Band Attenuation = –43 dB
- Single-Ended Voltage Output
- Analog LPF Included
Multifunctions:
- Human Interface Device (HID) Function:
  - Volume and Mute Controls
- Suspend Flag Function
28-Pin SSOP Package

Number of ADC channels	2
Number of DAC channels	2
Analog inputs	2
Sampling rate (max) (kHz)	48
Control interface	HID
Features	S/PDIF I/O
Analog outputs	2
Rating	Catalog
Operating temperature range (°C)	-25 to 85
