Описание

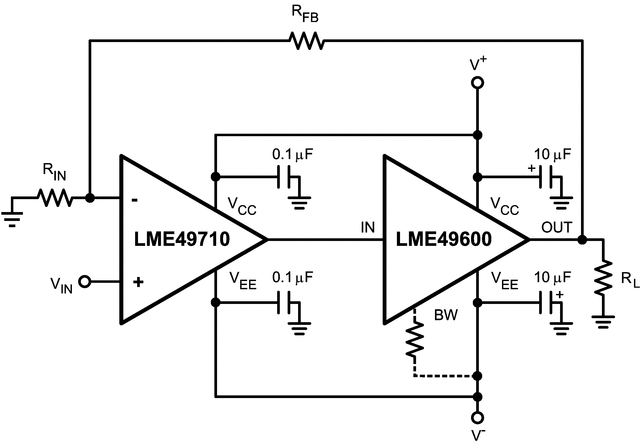

The LME49600 is a high performance, low distortion high fidelity 250mA audio buffer. The LME49600 is designed for a wide range of applications. It can be used inside the feedback loop of op amps. The LME49600 offers a pin-selectable bandwidth: a low current, 110MHz bandwidth mode that consumes 7.3mA and a wide 180MHz bandwidth mode that consumes 13.2mA. In both modes the LME49600 has a nominal 2000V/μs slew rate. Bandwidth is easily adjusted by either leaving the BW pin unconnected or connecting a resistor between the BW pin and the VEE pin. The LME49600 is fully protected through internal current limit and thermal shutdown.

Pin-Selectable Bandwidth and Quiescent Current
Pure Fidelity, Pure Performance
Short Circuit Protection
Thermal Shutdown
TO–263 Surface-Mount Package

Key Specifications

Low THD+N (V_OUT = 3V_RMS, f = 1kHz, ): 0.00003% (typ)
Slew Rate: 2000V/μs (typ)
High Output Current: 250mA (typ)
Bandwidth
- BW Pin Floating: 110MHz (typ)
- BW Connected to V_EE: 180MHz (typ)
Supply Voltage Range: ±2.25V ≤ V_S ≤ ±18V

All trademarks are the property of their respective owners.

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	4.5
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	36
GBW (typ) (MHz)	180
Slew rate (typ) (V/µs)	2000
Rail-to-rail	No
Vos (offset voltage at 25°C) (max) (mV)	60
Iq per channel (typ) (mA)	14
Vn at 1 kHz (typ) (nV√Hz)	3
THD + N at 1 kHz (typ) (%)	0.00003
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Iout (typ) (A)	0.25
Architecture	Voltage FB
CMRR (typ) (dB)	0
Input bias current (max) (pA)	5000000
