Описание

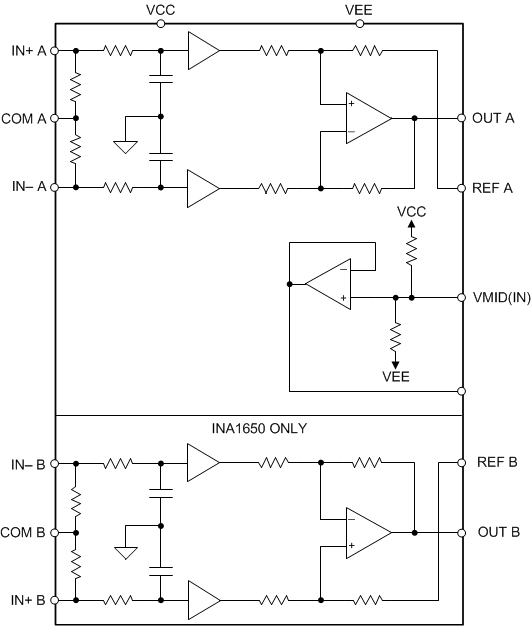

The dual-channel INA1650 and single-channel INA1651 (INA165x) SoundPlus™ audio line receivers achieve an extremely-high common-mode rejection ratio (CMRR) of 91 dB while maintaining an ultra-low THD+N of –120 dB at 1 kHz for 22-dBu signal levels. Precision matching of on-chip resistors give the INA165x devices excellent CMRR performance. These resistors have matching that is far superior compared to external components, and are immune to mismatches introduced by printed circuit board (PCB) layout. Unlike other line receiver products, the INA165x CMRR is characterized over temperature and tested in production to deliver consistent performance in a wide variety of applications.The INA165x devices operate over a very-wide-supply range of ±2.25 V to ±18 V, on 10.5 mA of supply current. In addition to the line-receiver channels, a buffered mid-supply reference output is included, making the INA165x configurable for dual- or single-supply applications. The mid-supply output can be used as a bias voltage for other analog circuitry in the signal chain. These devices are specified from –40°C to +125°C.

High Common-Mode Rejection:
91 dB (Typical)
High Input Impedance: 1-MΩ Differential
Ultra-Low Noise: –104.7 dBu, Unweighted
Ultra-Low Total Harmonic Distortion + Noise:
–120 dB THD+N (22 dBu, 22-kHz Bandwidth)
Wide Bandwidth: 2.7 MHz
Low Quiescent Current: 6 mA (INA1651, Typical)
Short-Circuit Protection
Integrated EMI Filters
Wide Supply Range: ±2.25 V to ±18 V
Available in Small 14-Pin TSSOP Package

Number of channels	2
Voltage gain (V/V)	1
CMRR at RS = 0 Ω (min) (dB)	85
THD + N at 1 kHz (%)	0.00039
Noise floor (RTO, 20-kHz BW) (dBu)	-104.7
Differential input impedance (kΩ)	1000
Common-mode input impedance (kΩ)	250
Slew rate (typ) (V/µs)	10
Small-signal bandwidth (typ) (Hz)	2700000
Supply voltage (max) (V)	36
Supply voltage (min) (V)	4.5
Iq per channel (typ) (mA)	5.25
Operating temperature range (°C)	-40 to 125
Rating	Catalog
