Описание

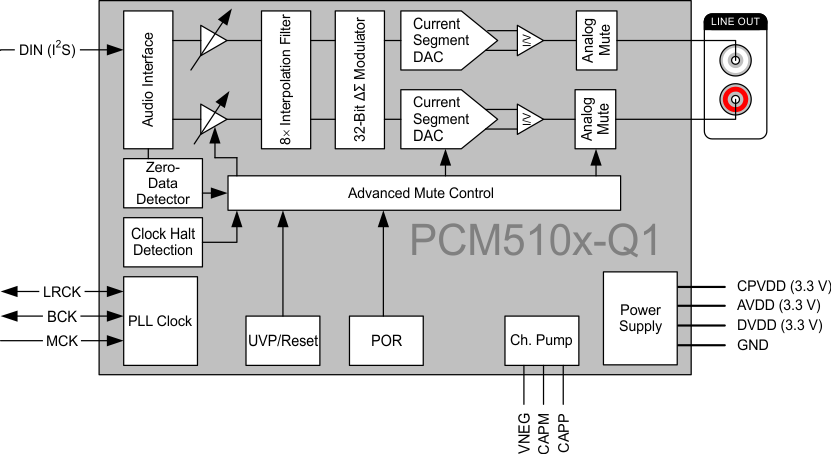

The PCM510x-Q1 family is a series of monolithic CMOS integrated circuits that include a stereo digital-to-analog converter and additional support circuitry in a small TSSOP package. The PCM510x-Q1 uses the latest generation of TI’s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM510x-Q1 provides 2.1-VRMS ground-centered outputs, allowing designers to eliminate not only dc blocking capacitors on the output, but also external muting circuits traditionally associated with single-supply line drivers. The integrated line driver surpasses all other charge-pump-based line drivers by supporting loads down to 1 kΩ. By supporting loads down to 1 k&3937;, the PCM510x-Q1 can essentially drive up to 10 products in parallel (LCD TV, DVDR, AV receivers, and so on). The integrated PLL on the device removes the requirement for a system clock (commonly known as master clock). This allows a three-wire I2S connection, along with reduced system EMI. Intelligent clock error and PowerSense undervoltage protection uses a two-level mute system for pop-free performance. On clock error or system power failure, the device digitally attenuates the data (or last known-good data), then mutes the analog circuit Compared with existing DAC technology, the PCM510x-Q1 offers up to 20-dB lower out-of-band (OBN) noise, reducing EMI and aliasing in downstream amplifiers/ADCs. (from traditional 100-kHz OBN measurements all the way to 3 MHz) The PCM510x-Q1 accepts industry-standard audio data formats with 16- to 32-bit data and supports sSample rates up to 384 kHz.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 2: –40°C to 105°C Ambient
  Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
Market-Leading Low Out-of-Band Noise
Selectable Digital-Filter Latency and Performance
No DC Blocking Capacitors Required
Integrated Negative Charge Pump
Internal Pop-Free Control For Sample-Rate Changes or Clock Halts
Intelligent Muting System; Soft Up/Down Ramp
and Analog Mute For 120-dB Mute SNR With Popless Operation.
Integrated High-Performance Audio PLL With BCK Reference to
Generate SCK Internally
Small 20-pin TSSOP Package

Other Key Features

Accepts 16-, 24-, and 32-Bit Audio Data
PCM Data Formats: I²S, Left-Justified
Automatic Power-Save Mode When LRCK And BCK Are Deactivated
3.3-V Failsafe LVCMOS Digital Inputs
Hardware Configuration
Single-Supply Operation:
- 3.3-V Analog, 3.3-V Digital
Integrated Power-On Reset

Number of DAC channels	2
Analog inputs	0
Analog outputs	2
DAC SNR (typ) (dB)	112
Sampling rate (max) (kHz)	384
Control interface	HW
Resolution (Bits)	32
Architecture	Delta Sigma with line driver
Operating temperature range (°C)	-40 to 105
Rating	Automotive
