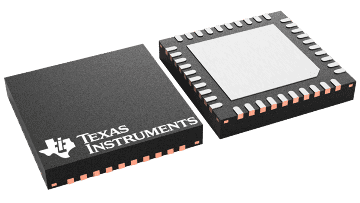

TLV320AIC3206 Texas instruments

TLV320AIC3206

Уточнить цену

TLV320AIC3206

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

The TLV320AIC3206 (sometimes referred to as the AIC3206) is a flexible, low-power, low-voltage stereo audio codec with programmable inputs and outputs, PowerTune capabilities, fixed predefined and parameterizable signal processing blocks, integrated PLL and flexible digital interfaces.

Stereo Audio DAC with 100-dB SNR
5.8-mW Stereo 48-ksps DAC-to-Ground-
Centered Headphone Playback
Stereo Audio ADC with 93-dB SNR
5.2-mW Stereo 48-ksps ADC Record
PowerTune™
Extensive Signal Processing Options
Six Single-Ended or 3 Fully-Differential
Analog Inputs
Stereo Analog and Digital Microphone
Inputs
Ground-Centered Stereo Headphone Outputs
Very Low-Noise PGA
Low Power Analog Bypass Mode
Programmable Microphone Bias
Programmable PLL
5-mm × 5-mm 40-pin QFN or
3.5-mm × 3.3-mm 42-ball
WCSP (DSBGA) Package

Number of ADC channels	2
Number of DAC channels	2
Digital audio interface	DSP, I2S, L, R, TDM
Analog inputs	6
Analog outputs	4
Sampling rate (max) (kHz)	192
Rating	Catalog
Features	Digital mic support, Phase-locked loop (PLL), PowerTune, Stereo headphone amplifier
ADC SNR (typ) (dB)	93
DAC SNR (typ) (dB)	100
Operating temperature range (°C)	-40 to 85
