Описание

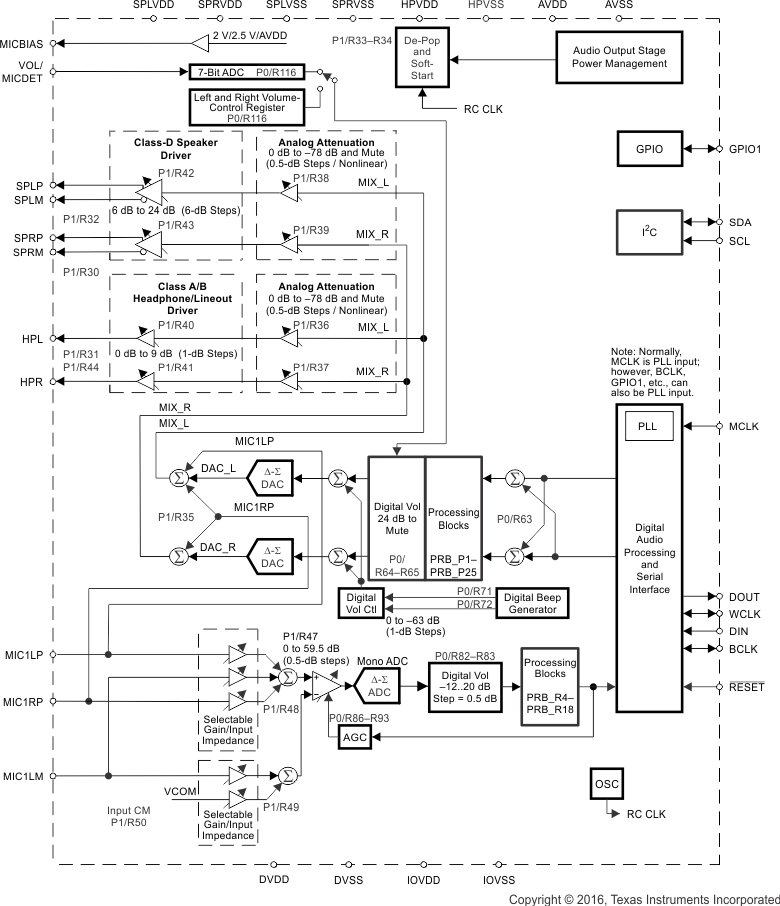

The TLV320AIC3110 device is a low-power, highly integrated, high-performance codec that supports stereo audio DAC, and mono audio ADC. The TLV320AIC3110 device features a high-performance audio codec with 24-bit stereo playback and monaural record functionality. The device integrates several analog features, such as a microphone interface, headphone drivers, and speaker drivers. The digital-audio data format is programmable to work with popular audio standard protocols (I2S, left-justified and right-justified) in master, slave, DSP, and TDM modes. Bass boost, treble, or EQ is supported by the programmable digital-signal processing blocks (PRB). An on-chip PLL provides the high-speed clock required by the digital-signal processing block. The volume level is controlled either by pin control or by register control. The audio functions are controlled using the I2C serial bus. The TLV320AIC3110 device has a programmable digital sine-wave generator and is available in a 32-pin VQFN package.

Stereo Audio DAC With 95-dB SNR
Mono Audio ADC With 91-dB SNR
Supports 8-kHz to 192-kHz Separate DAC and
ADC Sample Rates
Stereo 1.29-W Class-D BTL 8-Ω Speaker Driver
With Direct Battery Connection
One Differential and Three Single-Ended Inputs
With Mixing and Level Controls
Microphone With Bias, Preamp PGA, and AGC
Built-in Digital Audio Processing Blocks (PRB) With
User-Programmable Biquad, FIR Filters, and DRC
Digital Mixing Capability
Programmable Digital Audio Processor for Bass
Boost/Treble/EQ With up to Five Biquads for
Record and up to Six Biquads for Playback
Pin Control or Register Control for Digital-Playback
Volume-Control Settings
Digital Sine-Wave Generator for Beeps and Key-
Clicks
Integrated PLL Used for Programmable Digital
Audio Processor
I²S, Left-Justified, Right-Justified, DSP, and TDM
Audio Interfaces
I²C Control With Register Auto-Increment
Full Power-Down Control
Power Supplies:
- Analog: 2.7 V–3.6 V
- Digital Core: 1.65 V–1.95 V
- Digital I/O: 1.1 V–3.6 V
- Class-D: 2.7 V–5.5 V (SPLVDD and SPRVDD ≥
  AVDD)
5-mm × 5-mm 32-VQFN Package
APPLICATIONS
- Portable Audio Devices
- Mobile Internet Devices
- e-Books

Number of ADC channels	1
Number of DAC channels	2
Digital audio interface	DSP, I2S, L, R, TDM
Analog inputs	3
Analog outputs	4
Sampling rate (max) (kHz)	192
Rating	Catalog
Features	Digital mic support, Phase-locked loop (PLL), Stereo Class-D amplifier, Stereo headphone amplifier
ADC SNR (typ) (dB)	90
DAC SNR (typ) (dB)	95
Operating temperature range (°C)	-40 to 85
