Описание

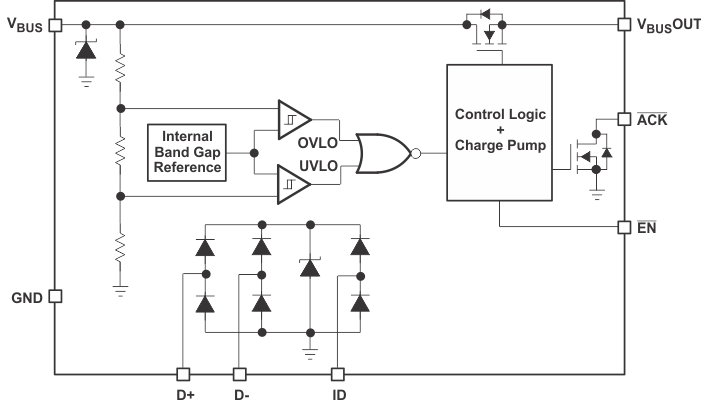

The TPD4S014 is a single-chip solution for USB charger port protection. This device offers low capacitance transient voltage suppressor (TVS) electrostatic discharge (ESD) clamps for the D+, D-, and standard capacitance for the ID pin. On the VBUS pin, this device provides overvoltage protection (OVP) up to 28 V DC. The overvoltage lockout feature ensures that if there is a fault condition at the VBUS line, the TPD4S014 is able to isolate the VBUS line to protect the internal circuitry from damage. There is a 17-ms turn-on delay after VBUS rises above the undervoltage lockout (UVLO) threshold in order to let the voltage stabilize before turning the nFET on. This function acts as a de-glitch and prevents unnecessary switching if there is any ringing on the line during connection.

Input Voltage Protection at V_BUS up to 28 V
Low Ron nFET Switch
Supports > 2 A Charging Current
ESD Performance D+/D-/ID/V_BUS Pins:
- ±15-kV Contact Discharge (IEC 61000-4-2)
- ±15-kV Air Gap Discharge (IEC 61000-4-2)
Overvoltage and Undervoltage Lockout Features
Low Capacitance TVS ESD Clamp for USB2.0 High Speed Data Rate
Internal 17 ms Startup Delay
Integrated Input Enable and Status Output Signal
Thermal Shutdown Feature
Space Saving SON Package (2 mm × 2 mm)

Number of switches	4
IO capacitance (typ) (pF)	1.5
IEC 61000-4-2 contact (±V)	15000
IEC 61000-4-2 air-gap (±V)	15000
Features	Overvoltage protection
Bi-/uni-directional	Unidirectional
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Dynamic resistance (typ)	1
Clamping voltage (V)	15
Interface type	USB 2.0
