Описание

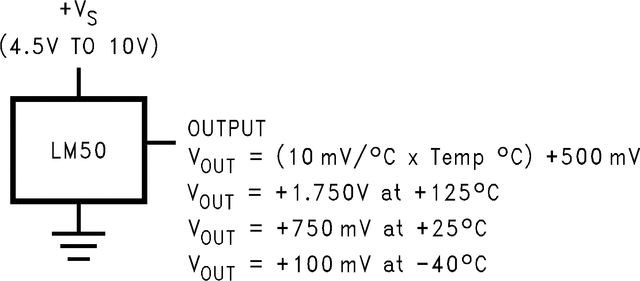

The LM50 and LM50-Q1 devices are precision integrated-circuit temperature sensors that can sense a –40°C to 125°C temperature range using a single positive supply. The output voltage of the device is linearly proportional to temperature (10 mV/°C) and has a DC offset of 500 mV. The offset allows reading negative temperatures without the need for a negative supply. The ideal output voltage of the LM50 or LM50-Q1 ranges from 100 mV to 1.75 V for a –40°C to 125°C temperature range. The LM50 and LM50-Q1 do not require any external calibration or trimming to provide accuracies of ±3°C at room temperature and ±4°C over the full –40°C to 125°C temperature range. Trimming and calibration of the LM50 and LM50-Q1 at the wafer level assure low cost and high accuracy. The linear output, 500 mV offset, and factory calibration of the LM50 and LM50-Q1 simplify the circuitry requirements in a single supply environment where reading negative temperatures is necessary. Because the quiescent current of the LM50 and LM50-Q1 is less than 130 µA, self-heating is limited to a very low 0.2°C in still air.

LM50-Q1 is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow
Calibrated Directly in Degrees Celsius (Centigrade)
Linear + 10 mV/°C Scale Factor
±2°C Accuracy Specified at 25°C
Specified for Full –40° to 125°C range
Suitable for Remote Applications
Low Cost Due to Wafer-Level Trimming
Operates from 4.5 V to 10 V
Less than 130-µA Current Drain
Low Self-Heating: Less than 0.2°C in Still A
Nonlinearity Less than 0.8°C Over Temp
UL Recognized Component

Local sensor accuracy (max)	2
Operating temperature range (°C)	-40 to 125, -40 to 150
Supply voltage (min) (V)	4.5
Supply voltage (max) (V)	10
Supply current (max) (µA)	130
Interface type	Analog output
Sensor gain (mV/°C)	10
Rating	Catalog
Features	UL recognized
