Описание

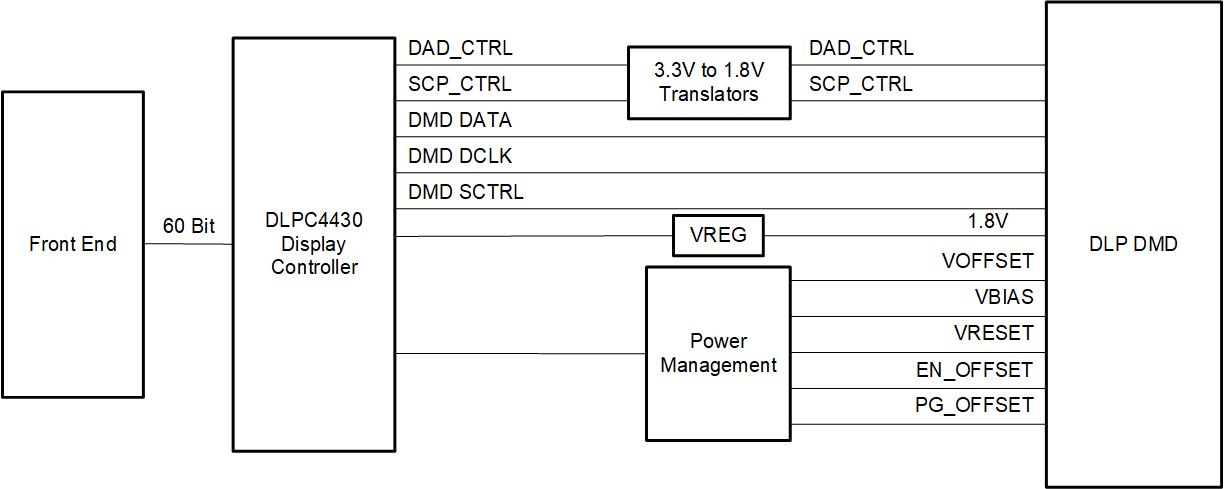

The TI DLPDLP470NE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright full HD display systems. DLP470NE DMD is only 0.47inches in size, yet delivers bright images and video up to 4000 lumens. The DLP470NE DMD, together with the DLPC4430 display controller, the DLPA100 controller power and motor driver provides the capability to achieve high performance systems and is a great fit for display applications that require high resolution and 16:9 aspect ratio, high brightness, and system simplicity in a smaller package.

0.47-inch diagonal micromirror array
- Full HD/1080P (1920 × 1080)
- 5.4-micron micromirror pitch
- ±17° micromirror tilt (relative to flat surface)
- Bottom illumination
2xLVDS input data bus
The DLP470NE chipset includes:

Component type	DMD
Display resolution (max)	1080p (1920x1080)
Chipset family	DLPC4430
Array diagonal (in)	0.47
Input frame rate (max) (Hz)	120
Rating	Catalog
Micromirror array size	1920x1080
Micromirror pitch (mm)	0.0054
Operating temperature range (°C)	0 to 70
