Описание

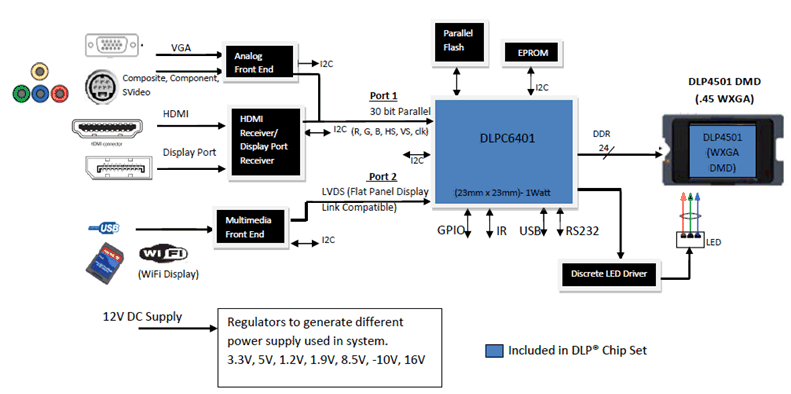

The DLPC6401 digital controller, part of the DLP4500 (.45 WXGA) chipset, supports reliable operation of the DLP4500 digital micromirror device (DMD). The DLPC6401 controller provides a convenient, multi-functional interface between system electronics and the DMD, enabling small form factor and high resolution HD displays.

Provides a 30-Bit Input Pixel Interface:
- YUV, YCrCb, or RGB Data Format
- 8, 9, or 10 Bits per Color
- Pixel Clock Support up to 150 MHz
Provides a Single Channel, LVDS Based,
Flat-Panel Display (FPD)-Link Compatible Input Interface:
- Supports Sources up to a 90-MHz Effective Pixel Clock Rate
- Four Demodulated Pixel-Mapped Modes Supported for 8, 9, 10 YUV, YCrCb, or RGB Formatted Inputs
Supports 45- to 120-Hz Frame Rates
Full Support for Diamond 0.45 WXGA
High-Speed, Double Data Rate (DDR) Digital Micromirror Device (DMD) Interface
149.33-MHz ARM926™ Microprocessor
Microprocessor Peripherals:
- Programmable Pulse-Width Modulation (PWM) and Capture Timers
- Two I²C Ports
- Two UART Ports (for Debug Only)
- 32 KB of Internal RAM
- Dedicated LED PWM Generators
Image Processing:
- Auto-Lock for Standard, Wide, and Black Border
- 1D Keystone Correction
- Programmable Degamma
On-Screen Display (OSD)
Splash Screen Display Support
Integrated Clock Generation Circuitry
- Operates on a Single 32-MHz Crystal
- Integrated Spread Spectrum Clocking
Integrated 64-Mb Frame Memory Eliminates the Need for External High-Speed Memory
External Memory Support: Parallel Flash for Microprocessor and PWM Sequence
System Control:
- DMD Power and Reset Driver Control
- DMD Horizontal and Vertical Image Flip
JTAG Boundary Scan Test Support
419-Pin Plastic Ball Grid Array Package

Component type	Display Controller
Display resolution (max)	WXGA (1280x800)
Chipset family	DLP4500, DLPC6401
Input frame rate (max) (Hz)	120
Rating	Catalog
Video ports	30-bit RGB, BT656, LVDS, Parallel
Operating temperature range (°C)	0 to 55
