Описание

The DLPC3437 digital controller, part of the DLP3310 (.33 1080p) chipset, supports reliable operation of the DLP3310 digital micromirror device (DMD). The DLPC3437 controller provides a convenient, multifunctional interface between system electronics and the DMD, enabling small form factor, low power, and high resolution full HD displays.Visit the getting started with TI DLP Pico™ display technology page, and view the programmers guide to learn how to get started.The chipsets include established resources to help the user accelerate the design cycle, which includeproduction ready optical modules, optical module manufacturers, and design houses.

Display controller for DLP3310 (.33 1080p) DMD

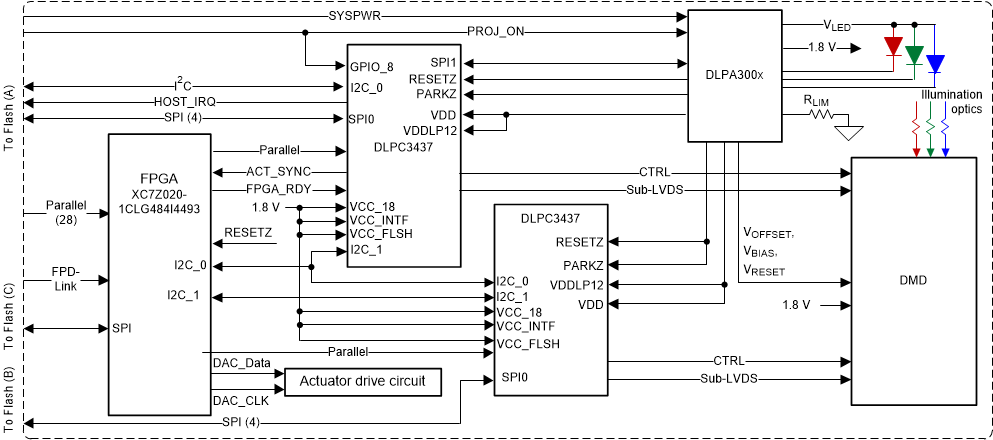

- Two DLP3437 controllers drive the DLP3310 DMD
- Supports input image sizes up to 1080p
- Low-power DMD interface with interface training
Input frame rates up to 120 Hz (60 Hz at 1080p resolution)
Pixel data processing:
- IntelliBright™ suite of image processing algorithms
  - Content adaptive illumination control (CAIC)
  - Local area brightness boost (LABB)
- Color coordinate adjustment
- Programmable degamma
- Image resizing (scaling)
- Color space conversion
24-bit, input pixel interface support:
- Parallel interface protocol
- Pixel clock up to 155 MHz
- Multiple input pixel data format options
Dual FPD-link input pixel interface support utilize with required FPGA:
- LVDS interface
- Effective pixel clock up to 155 MHz
External flash support
Auto DMD parking at power down
Embedded frame memory (eDRAM)
System features:
- I²C control of device configuration
- Programmable splash screens
- Programmable LED current control
- One frame latency
Pair with DLPA3000 or DLPA3005 PMIC (power management integrated circuit) and LED driver

Component type	Display Controller
Chipset family	DLP3310, DLPA3000, DLPC3437
Input frame rate (max) (Hz)	60
Rating	Catalog
Video ports	24-bit RGB, Parallel
Operating temperature range (°C)	-30 to 85
