Описание

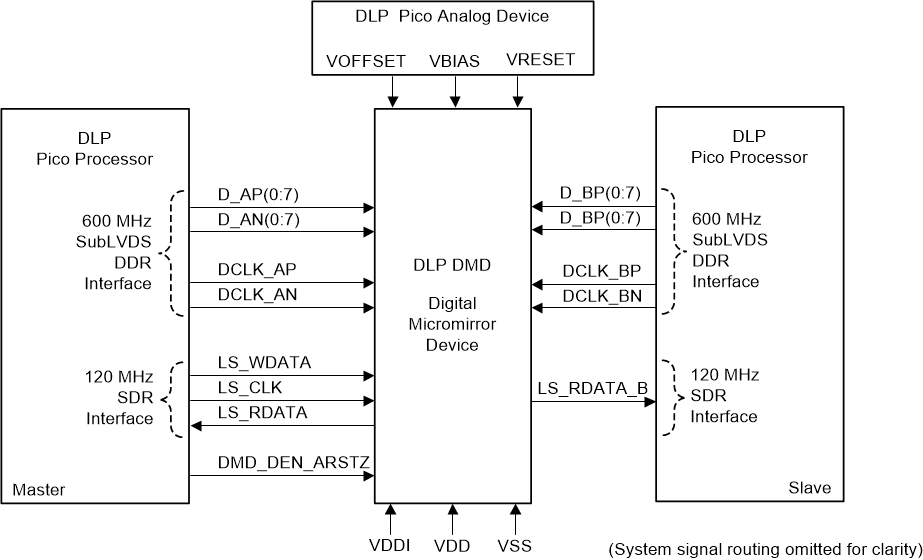

The DLP4710 digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DLP4710LC DMD displays a very crisp and high quality image or video. The device is a component of the chipset comprising the DLP4710 DMD, DLPC3479 controller and DLPA3000/DLPA3005 PMIC/LED drivers. The compact physical size of the DLP4710LC coupled with the controller and the PMIC/LED driver provides a complete system solution that enables small form factor, low power, and high resolution HD displays.Visit the getting started with TI DLP Pico™ display technology page to learn how to get started with the DLP4710.The DLP4710 ecosystem includes established resources to help the user accelerate the design cycle, which include production ready optical modules, optical modules manufactures, and design houses.

0.47-Inch (11.93-mm) diagonal micromirror array
- 1920 × 1080 array of aluminum micrometer-sized mirrors, in an orthogonal layout
- Micromirror pitch: 5.4 µm
- Micromirror tilt (relative to flat surface): ±17°
- Bottom illumination for optimal efficiency and optical engine size
- Polarization independent aluminum micromirror surface
32-Bit SubLVDS input data bus
Dedicated DLP3439 display controller
Dedicated DLPA3000 or DLPA3005 PMIC/LED drivers for reliable operation

Component type	DMD
Display resolution (max)	1080p (1920x1080)
Chipset family	DLP4710, DLPA3000, DLPA3005, DLPC3439
Array diagonal (in)	0.47
Input frame rate (max) (Hz)	120
Rating	Catalog
Micromirror array size	1920x1080
Operating temperature range (°C)	0 to 70
